Active Trigger Unit for thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs

Since 2006 Andreas Müller Electronic GmbH has been the official European distribution partner for EZYTriggerTM  units produced by  BSRControls CC.

Weiter in Deutsch bei Aktiven Trigger Modulen zur direkten Ansteuerung der gängigsten Thyristortypen über Mikrocontroller, Mikroprozessoren, CPLDs oder FPGAs


Technical features and valuable quality of the SCR / thyristor trigger firing unit


Reduced Costs

  • Requires no gate drive power
  • Simplifies logistics as it triggers any thyristor up to 690Vrms

Compact design

  • Reduces the PCB size because of its small footprint
  • Absence of a gate drive power supply

 High Reliability

  • Fully tested product
  • Superior electrical isolation
  • All modules have optically-isolated inputs                 (5KV, VDE0884)
  • Performs well in very harsh industrial environments
  • Handles any inductive or high di/dt load due to powerful gate pulse

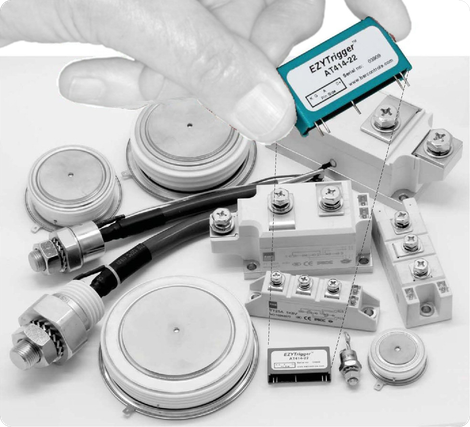

Compact active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs
Forward to functional description of Active Trigger Unit SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs

  • All components and parts used in these units have been certified by their manufacturers as RoHS Compliant.        Epoxy filler is RoHS Compliant (2011/65/EU) and UL Approval meets UL94 V-0.The Optocoupler is approved for UL1577 File No. E52744 System Code H or J, Double Protection and DIN EN 60747-5-2 (VDE0884), RoHS 2002/96/EC and WEEE (2002/96/EC). No warranty is given for the accuracy of information stated by the respective manufacturers.

EZYTrigger Units are installed in several equipments, machineries and devices.

For example some SCR / thyristor applications in different industry sections:

  • High power rectification
  • Softstarter
  • Battery charger equipments
  • Induction heating systems
  • DC Motor Drives
  • Conveyor system drives
  • Resistance welding switches
  • Cooling systems
  • Inverter welding systems
  • Cathodic protection systems
  • Variable speed drives
  • Traction Power Supplies
  • GTO gate drive units with static compensation
  • UPS - Uninterruptible Power Supply
  • Emergency Lighting Control
  • Electron Beam Welding
  • Lighting Control
  • Wind Turbines
  • Standby Power Systems
  • Electric Vehicles
  • Electrocoating


Please click on the relevant application you are looking for, we guide you to convenient type of module.


SCR / Thyristor Trigger Unit AT410 qualified for applications like Controlled Rectifiers, AC Controllers or DC Motor Controls

AT410

Forward to the datasheet of SCR / Thyristor Trigger Unit AT410 Line with line voltage 100-690Vrms


SCR / Thyristor Trigger Unit AT411 qualified for applications like low cost AC Controllers or  competitive 1- and 3- phase AC controllers

AT411



SCR / Thyristor Trigger Unit AT412 qualified for applications like zero-cross switching applications,  zero Crossing thyristor controller, electrical heating and high temperature controls or welding equipment and automatic welding machines

AT412

Forward to the datasheet of SCR / Thyristor Trigger Unit AT412 Line with line voltage 100-690Vrms


SCR / Thyristor Trigger Unit AT413 qualified for applications with a single thyristor trigger control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs

AT413

Forward to the datasheet of SCR / Thyristor Trigger Unit AT413 Line with line voltage 100-690Vrms


SCR / Thyristor Trigger Unit AT414 with signal input designed for optical fibre cable receiver device  specially for optical control of a single thyristor with up to 25m fibre-optic cable . Developed for electrical isolation applications under difficult o

AT414



SCR / Thyristor PCB Assembly BT414 with signal input designed for optical fibre cable receiver device  specially for optical control of a single thyristor with up to 25m fibre-optic cable . Developed for electrical isolation applications under difficult o

BT414

Forward to the datasheet of SCR / Thyristor PCB Assembly BT414 Line with line voltage 100-690Vrms


SCR / Thyristor Trigger Unit AT416 was developed for firing single High Power Thyristors with optical control signals  by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs under difficult operation conditions.

AT416

Forward to the datasheet of SCR / Thyristor Trigger Unit AT416 for High Power Thyristors with line voltage rate 1250-2500Vrms


For your  general survey please download

the EZYTrigger Main Catalogue with all types of modules

Download of the EZYTrigger Main Catalogue with all types of trigger modules


Forward to functional description of Active Trigger Unit SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs


Mail contact for active Trigger Unit for thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs

Are you interested in testing these trigger modules on your electronic application?

Please contact us and quote the number of desired type of modules and we will send you an introductory price for this test package. We would be pleased to receive your message and to advise you in all matters concerning the desired product.
