AT410 Trigger Module / Line voltage 100-690Vrms

Deutsches Datenblatt des Thyristor Trigger Modul AT410 mit einer Netzspannung von 100-690Vrms

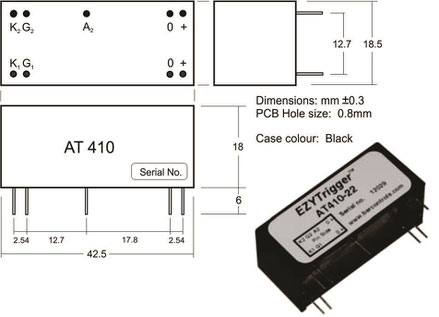

Package dimensions

SCR / Thyristor Trigger Unit AT410 qualified for applications like Controlled Rectifiers, AC Controllers or DC Motor Controls

Applications

  • Controlled Rectifiers
  • AC Controllers
  • DC Motor Control

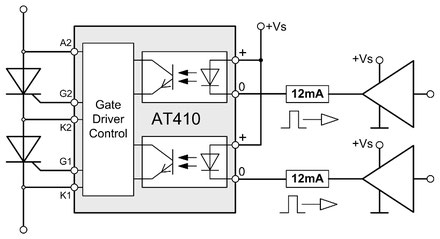

Functional diagram AT410

The AT410 Trigger Unit was developed for applications, requiring two independent controlled thyristor firing signals

The AT410 Trigger unit was developed for applications requiring two independent controlled thyristor firing signals.

Download the datasheet of SCR / Thyristor Trigger Unit AT410 Line with line voltage 100-690Vrms

You can download the data sheet for the EZYTrigger AT410 module here for your records.

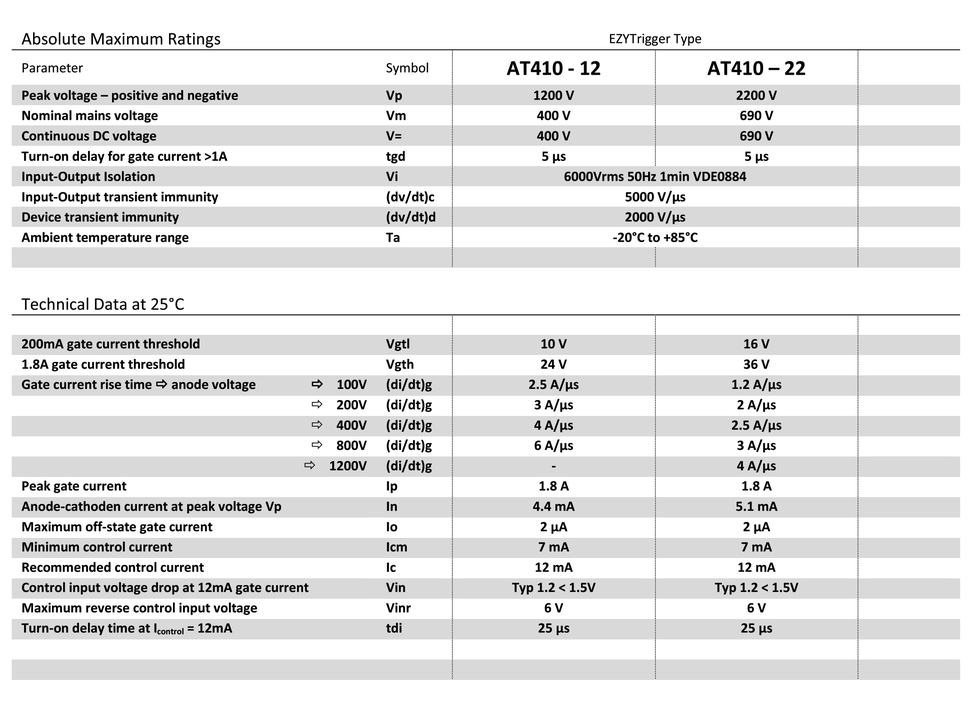

Technical Specifications AT410


Technical specifications  of active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs including datasheet

All components and parts used in these units have been certified by their manufacturers as RoHS Compliant. Epoxy filler is RoHS Compliant (2011/65/EU) and UL Approval meets UL94 V-0.The Optocoupler is approved for UL1577 File No. E52744 System Code H or J, Double Protection and DIN EN 60747-5-2 (VDE0884), RoHS 2002/96/EC and WEEE (2002/96/EC). No warranty is given for the accuracy of information stated by the respective manufacturers.


Back to type selection list of Active Trigger Units for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs
Back to functional description of Active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs
Download of the EZYTrigger Main Catalogue with all types of these trigger modules

For a general overview please download the EZYTrigger main catalogue with all module types



Mail contact for active Trigger Unit for thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs

Are you interested in testing these trigger modules on your electronic application?

Please contact us and quote the number of desired type of modules and we will send you an introductory offer for this test package. We would be pleased to receive your message and to advise you in all matters concerning the desired product.
