Technical specifications  of active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs including datasheet

BT414 Trigger PCB Assembly w/ fibre optical port / Line Voltage 100-690Vrms

Deutsches Datenblatt des Thyristor PCB Assembly BT414 Trigger Unit mit einer Netzspannung von 100-690Vrms

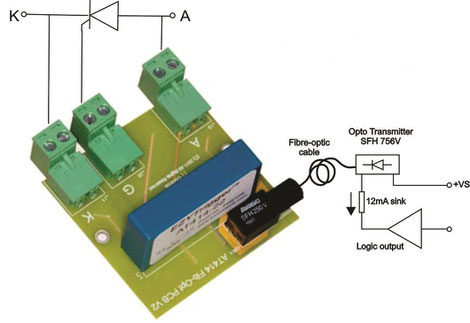

Connection diagram BT414 PCB

BT414 PCB Assembly dimensions

Applications

Applications

  • Trigger unit signal input designed for optical fibre cable receiver device
  • Optical control of a single thyristor with up to 25m fibre-optic cable
  • Optical control of any thyristor type including types with amplifying gate
  • Electrostatic precipitators

The AT414 Trigger unit was developed for electrical isolation applications requires single SCR / thyristor control under difficult operation conditions.

The EZYTrigger Modules features high interference resistance.

The BT414 PCB with assembled AT414 Trigger Module and fibre optic receiver device can be ordered

as a ready-to-connection assembly.

You can download the data sheet for the EZYTrigger AT414 module here for your records.



Technical data BT414


Technical specifications  of active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs including datasheet

All components and parts used in these units have been certified by their manufacturers as RoHS Compliant. Epoxy filler is RoHS Compliant (2011/65/EU) and UL Approval meets UL94 V-0.The Optocoupler is approved for UL1577 File No. E52744 System Code H or J, Double Protection and DIN EN 60747-5-2 (VDE0884), RoHS 2002/96/EC and WEEE (2002/96/EC). No warranty is given for the accuracy of information stated by the respective manufacturers.


Back to type selection list of Active Trigger Units for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs
Back to functional description of Active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs
Download of the EZYTrigger Main Catalogue with all types of these trigger modules

For a general overview please download the EZYTrigger main catalogue with all module types



Mail contact for active Trigger Unit for thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs

Are you interested in testing these trigger modules on your electronic application?

Please contact us and quote the number of desired type of modules and we will send you an introductory offer for this test package. We would be pleased to receive your message and to advise you in all matters concerning the desired product.
