AT416 Trigger Module / Line Voltage 1250-2500Vrms

Deutsches Datenblatt des Thyristor Trigger Modul AT416 Trigger Modul mit einer Netzspannung von 1250-2500Vrms

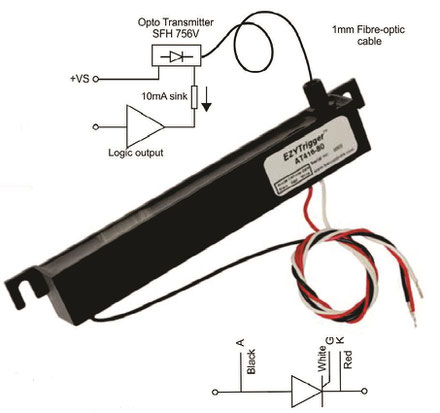

Connection diagram AT416

The SCR / Thyristor Trigger Unit AT416 was developed for firing single High Power Thyristors with optical control signals  by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs under difficult operation conditions

Application

The AT416 Trigger Unit was developed for firing single High Power Thyristors with optical control signals

under difficult operational conditions.



The EZYTrigger Module AT416

features very high interference resistance.

The 10mA trigger signal converts any high-voltage SCR into an optical controlled device.

Required gate current is derived from the anode

of the thyristor via a controlled current source of 2.5A.

There is no need for an additional isolated power source for the gate drive.

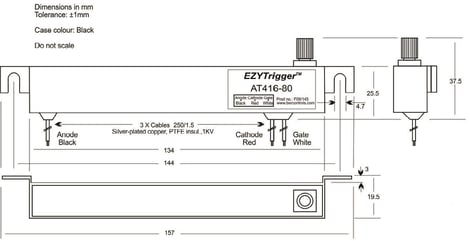

Package dimensions AT416

The SCR / Thyristor Trigger Unit AT416 was developed for firing single High Power Thyristors with optical control signals  by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs under difficult operation conditions

You can download the data sheet for the EZYTrigger AT416 module here for your records.

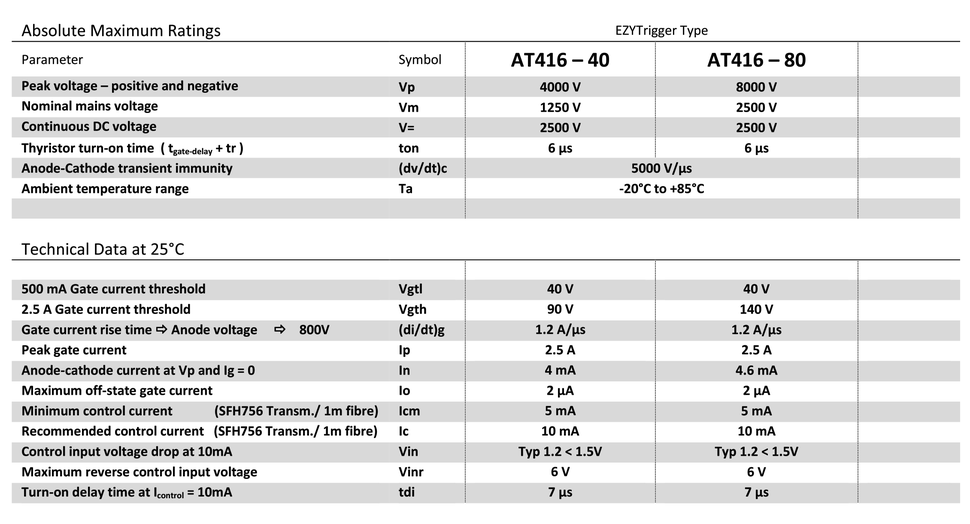

Technical data AT416

Technical specifications  of active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs including datasheet

All components and parts used in these units have been certified by their manufacturers as RoHS Compliant. Epoxy filler is RoHS Compliant (2011/65/EU) and UL Approval meets UL94 V-0.The Optocoupler is approved for UL1577 File No. E52744 System Code H or J, Double Protection and DIN EN 60747-5-2 (VDE0884), RoHS 2002/96/EC and WEEE (2002/96/EC). No warranty is given for the accuracy of information stated by the respective manufacturers.
