Technical specifications of active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs including datasheet

AT411 Trigger Module / Line voltage 100-690Vrms

Deutsches Datenblatt des Thyristor Trigger Modul AT411 mit einer Netzspannung von 100-690Vrms

Package dimensions

Applications

Low cost AC Controllers
Competitive 1- and 3-phase AC controllers

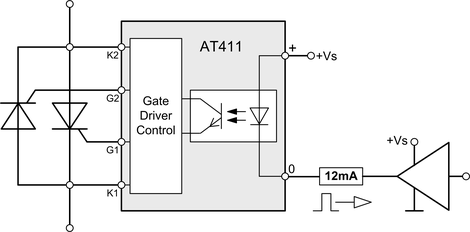

Functional diagram AT411

The AT411 Trigger unit was developed for applications

that require one control signal for triggering one pair of thyristors.

You can download the data sheet for the EZYTrigger AT411 module here for your records.

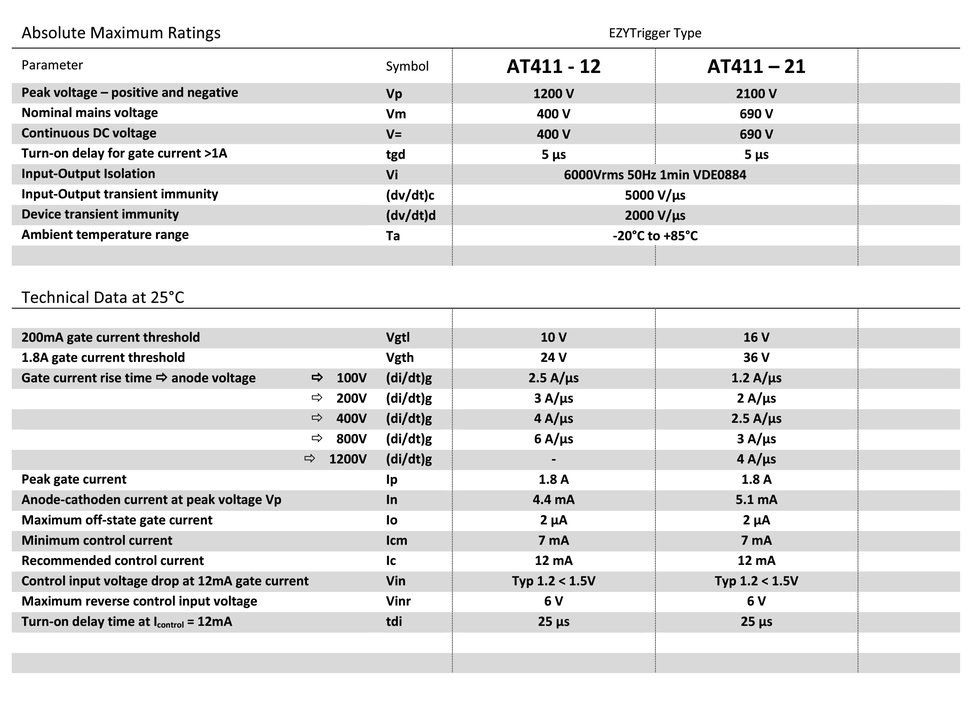

Technical Data AT411

All components and parts used in these units have been certified by their manufacturers as RoHS Compliant. Epoxy filler is RoHS Compliant (2011/65/EU) and UL Approval meets UL94 V-0.The Optocoupler is approved for UL1577 File No. E52744 System Code H or J, Double Protection and DIN EN 60747-5-2 (VDE0884), RoHS 2002/96/EC and WEEE (2002/96/EC). No warranty is given for the accuracy of information stated by the respective manufacturers.
