Technical specifications  of active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs including datasheet

AT413 Trigger Module / Line Voltage 100-690Vrms

Deutsches Datenblatt des Thyristor Trigger Modul AT413 mit einer Netzspannung von 100-690Vrms

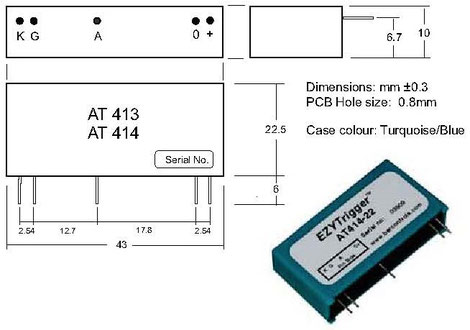

Package dimensions

The SCR / Thyristor Trigger Unit AT413 is qualified for applications with a single thyristor trigger control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs

Applications

  • Logic control trigger for a single thyristor application


Functional diagram AT413

The AT413 Trigger unit was developed for applications

that require µController trigger control for firing

a single SCR / Thyristor.

You can download the data sheet for the EZYTrigger AT413 module here for your records.

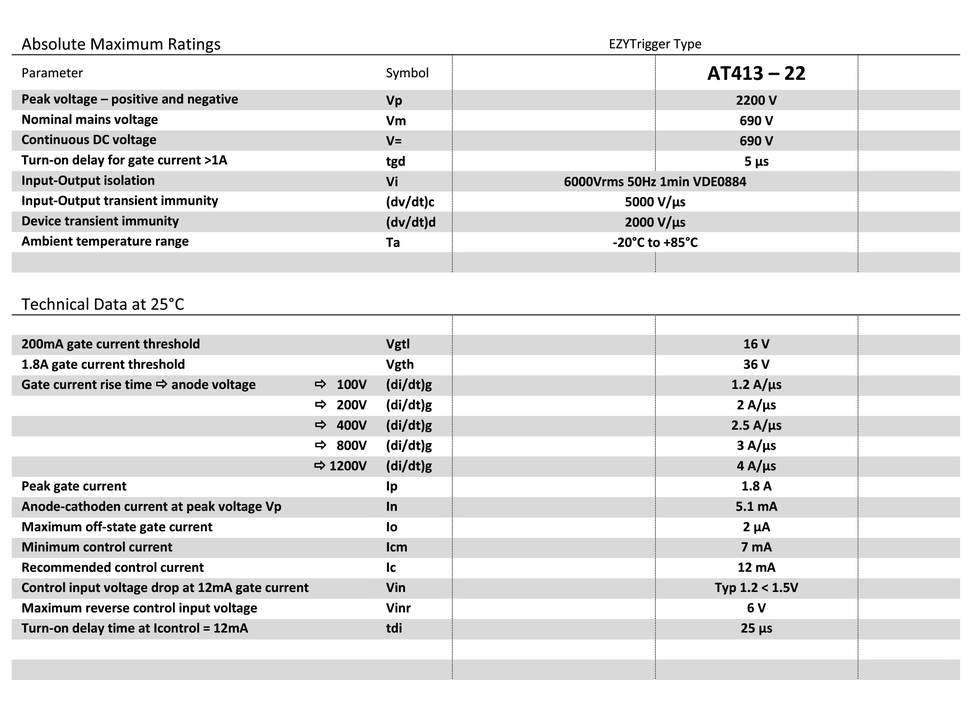

Technical data AT413


Technical specifications  of active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs including datasheet

All components and parts used in these units have been certified by their manufacturers as RoHS Compliant. Epoxy filler is RoHS Compliant (2011/65/EU) and UL Approval meets UL94 V-0.The Optocoupler is approved for UL1577 File No. E52744 System Code H or J, Double Protection and DIN EN 60747-5-2 (VDE0884), RoHS 2002/96/EC and WEEE (2002/96/EC). No warranty is given for the accuracy of information stated by the respective manufacturers.


Back to type selection list of Active Trigger Units for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs
Back to functional description of Active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs
Download of the EZYTrigger Main Catalogue with all types of these trigger modules

For a general overview please download the EZYTrigger main catalogue with all module types
