Technical specifications  of active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs including datasheet

AT412 Trigger Module / Line Voltage 100-690Vrms

Deutsches Datenblatt des Thyristor Trigger Modul AT412 mit einer Netzspannung von 100-690Vrms

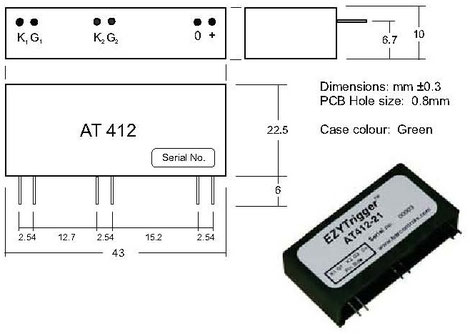

Package dimensions

The SCR / Thyristor Trigger Unit AT412 qualified for applications like zero-cross switching applications,  zero Crossing thyristor controller, electrical heating and high temperature controls or welding equipment and automatic welding machines

Applications

  • Zero-cross switching applications
  • Zero Crossing thyristor controller
  • Electrical heating and high temperature controls
  • Welding equipment and automatic welding machines

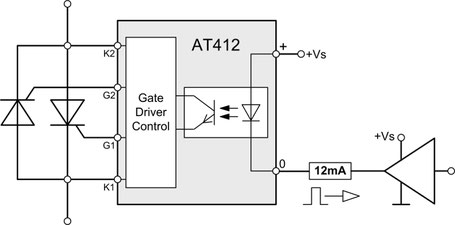

Functional diagram AT412

The AT412 Trigger unit was developed for applications, where a single control signal triggers both thyristors.  The thyristors firing when the voltage goes through zero

The AT412 Trigger unit was developed for applications where a single control signal triggers both thyristors.

The thyristors firing when the voltage goes through zero.

You can download the data sheet for the EZYTrigger AT412 module here for your records.

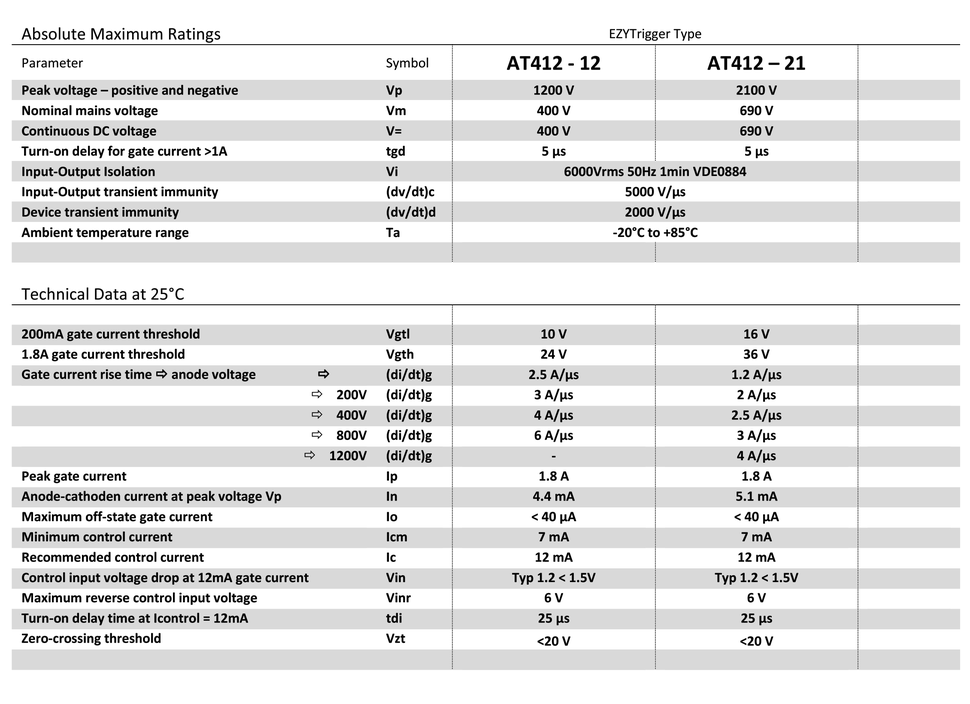

Technical data AT412


Technical specifications  of active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs including datasheet

All components and parts used in these units have been certified by their manufacturers as RoHS Compliant. Epoxy filler is RoHS Compliant (2011/65/EU) and UL Approval meets UL94 V-0.The Optocoupler is approved for UL1577 File No. E52744 System Code H or J, Double Protection and DIN EN 60747-5-2 (VDE0884), RoHS 2002/96/EC and WEEE (2002/96/EC). No warranty is given for the accuracy of information stated by the respective manufacturers.


Back to type selection list of Active Trigger Units for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs
Back to functional description of Active Trigger Unit for SCR / thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs
Download of the EZYTrigger Main Catalogue with all types of these trigger modules

For a general overview please download the EZYTrigger main catalogue with all module types



Mail contact for active Trigger Unit for thyristor control by logic circuit output signals from microcontrollers, microprocessors, CPLDs or FPGAs

Are you interested in testing these trigger modules on your electronic application?

Please contact us and quote the number of desired type of modules and we will send you an introductory offer for this test package. We would be pleased to receive your message and to advise you in all matters concerning the desired product.
